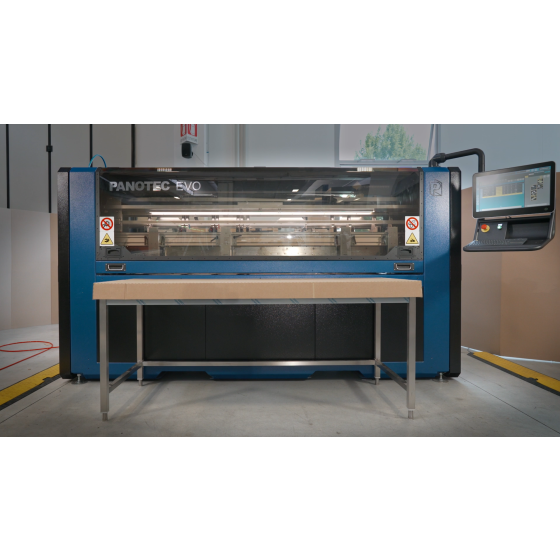

On demand, custom sized box production machine for low to medium productivity (>4boxes/min)

EVO - High performance machine for production of right-size packaging

EVO

On demand, custom sized box production machine for low to medium productivity (>4boxes/min)

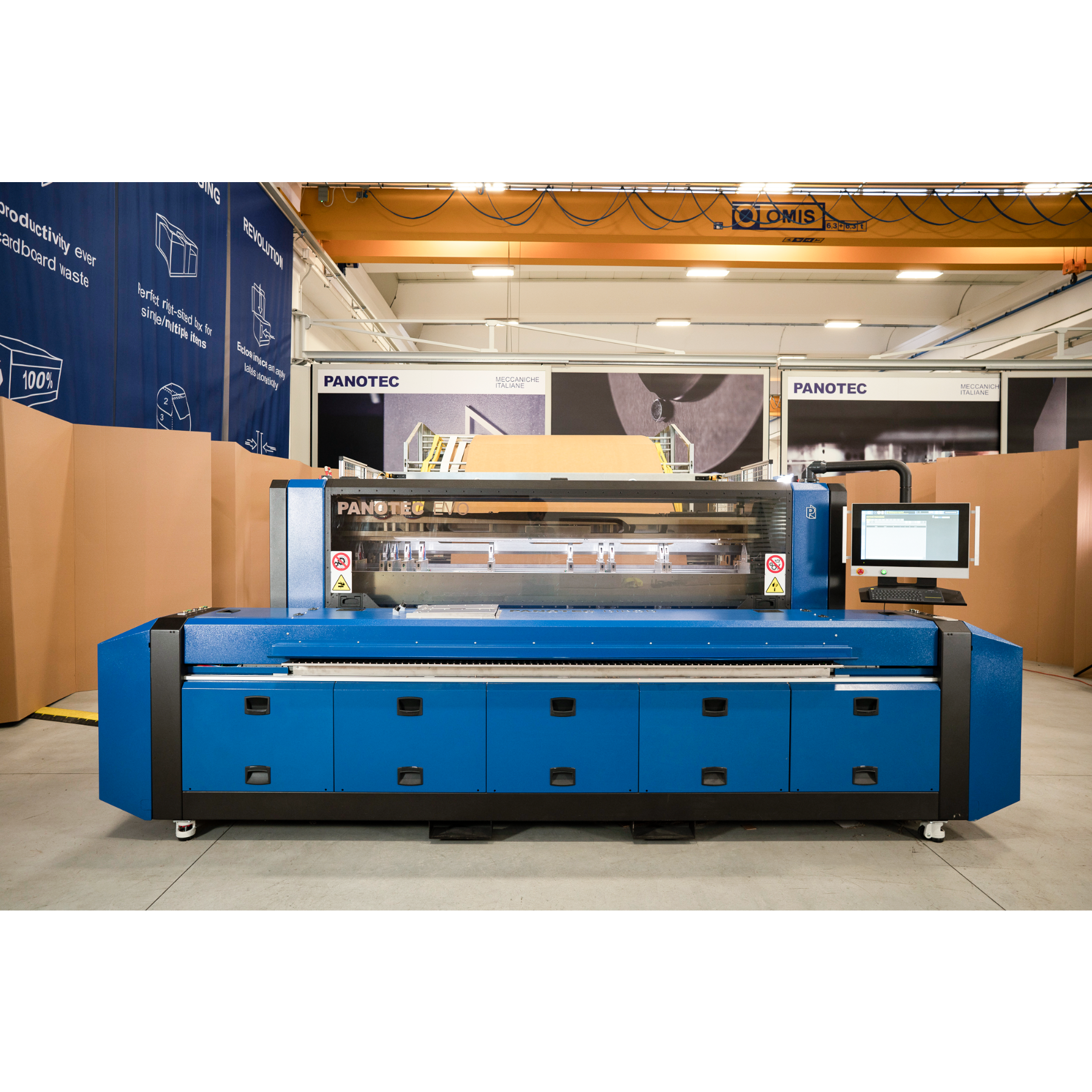

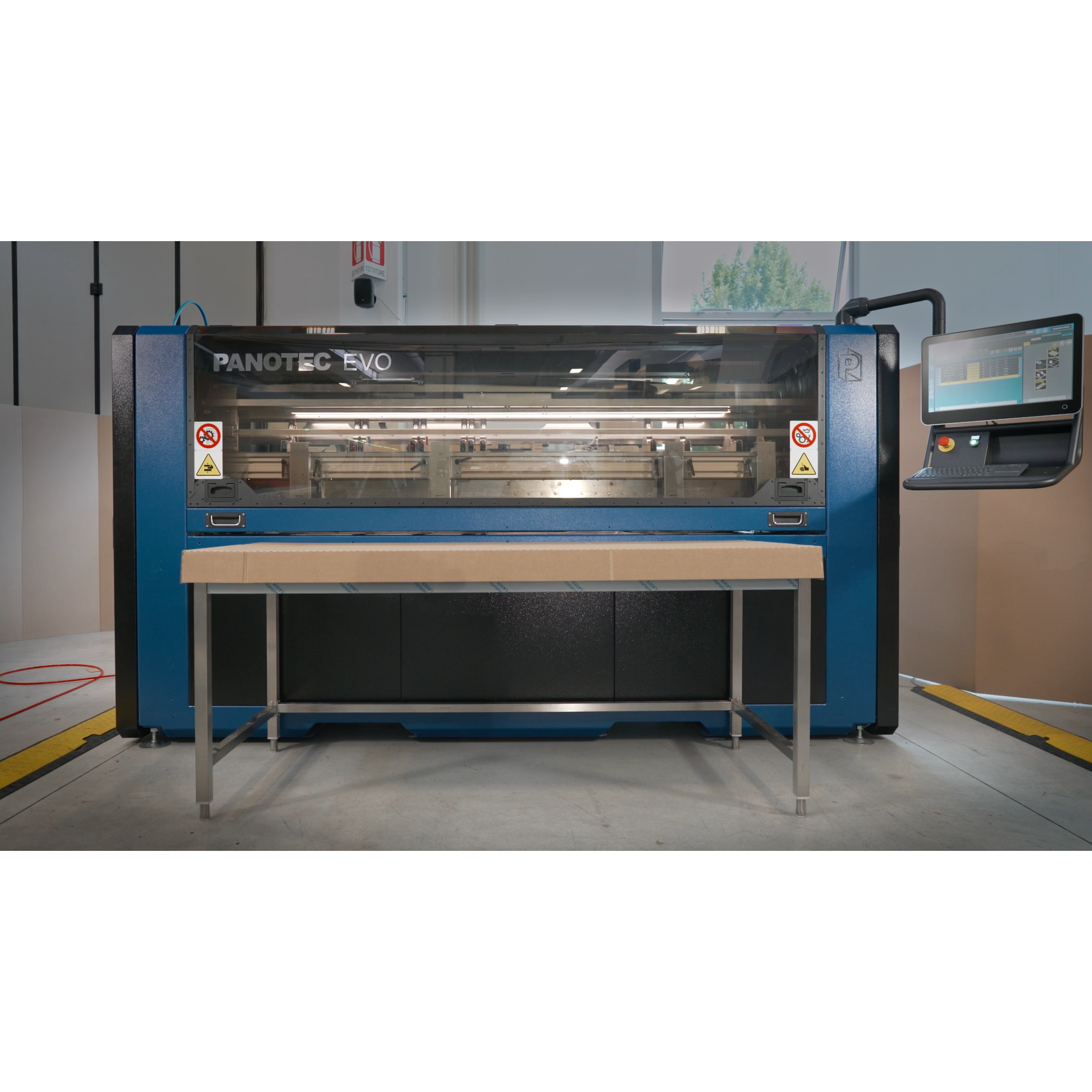

Evo is an on-demand, custom-sized box production machine for medium to highproductivity (more than 4 boxes per minute). It is designed with the aim of combining flexibility and productivity requirements across a wide range of sizes, Evo is an highly efficient packaging machine for the automatic production of customized boxes.

How does it works?

•You enter the needed box pattern and dimensions. You can either do this manually or through a CSV file or link to management system.

•Then the machine cuts and creases the box in seconds. The machine automatically sellects the best available cardboard to create the optimised box, minimising waste.

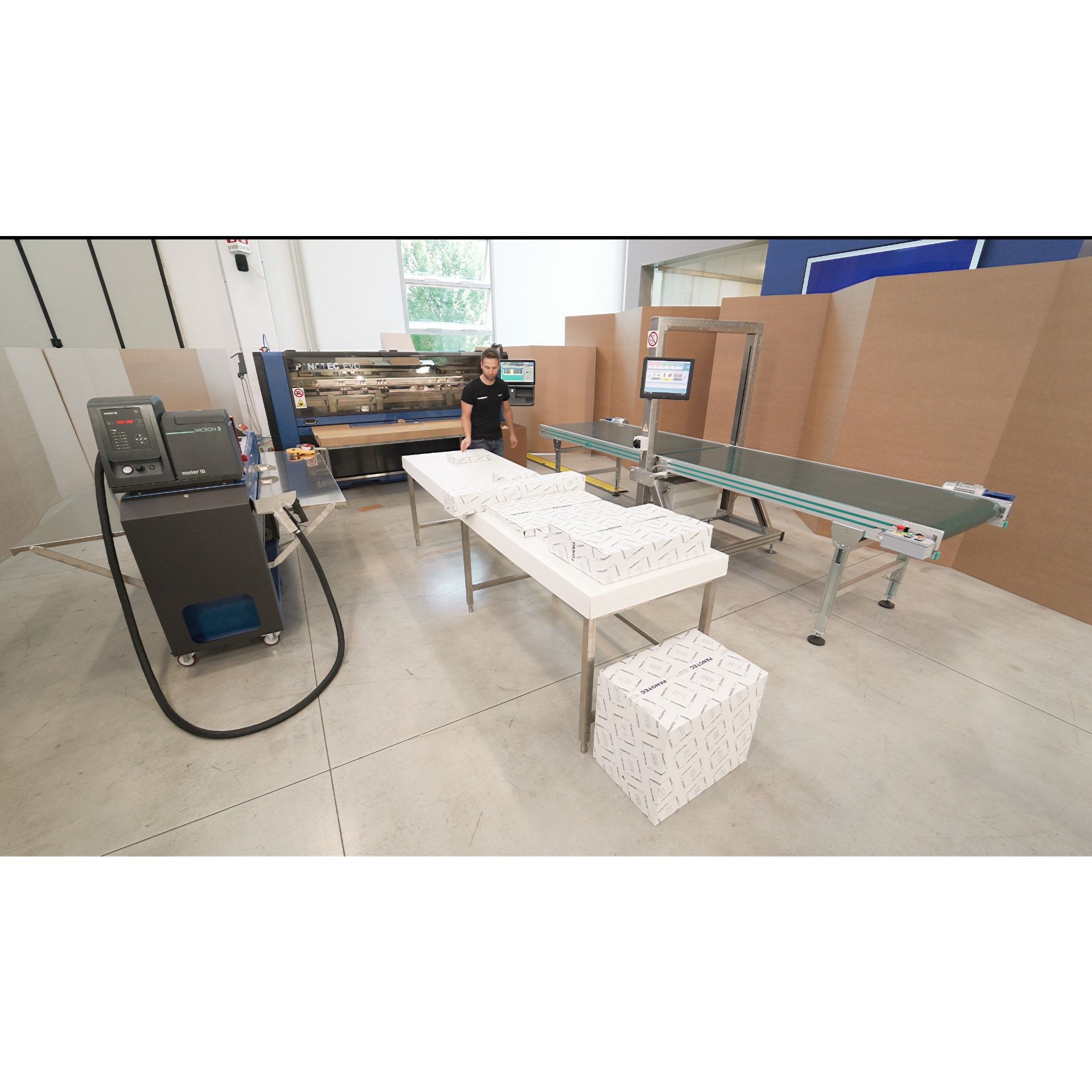

• After the operator manually packs product into the customised boxes. This process can be further automated with the use of accessories (forming, gluing, closing, measuring, printing)

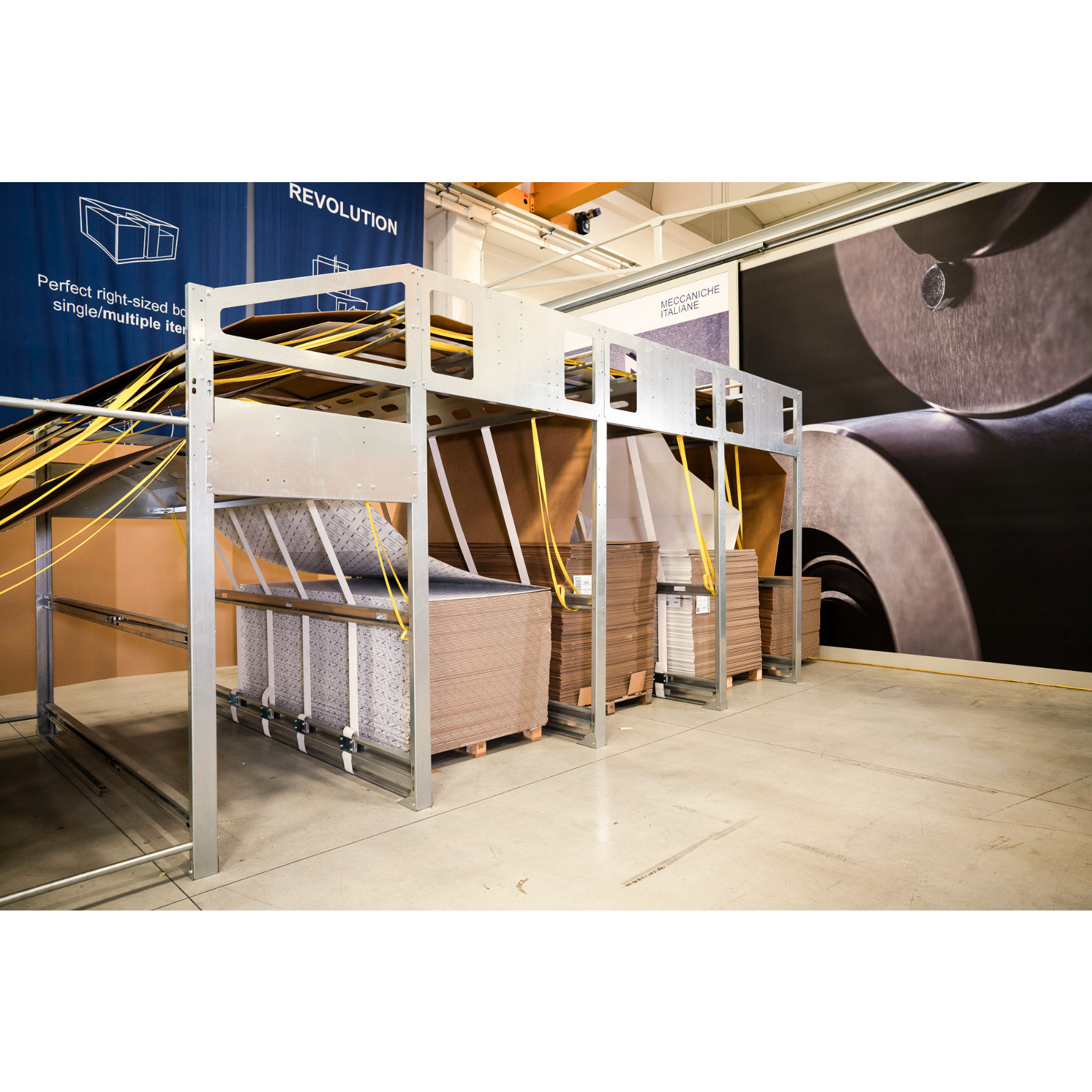

The machine is fed by a continuous sheet of corrugated cardboard folded like a fan, known as a fanfold. If more than one fanfold slot is present, the machine automatically selects the most suitable cardboard width to optimise consumption.

Applications: E-commerce, furnitire, shower cibicles, automative, digital priting.

Features

Operating width:	2.5m
Operating mode:	automatic
Productivity level:	medium to high
Boxes / min:	more than 4/min
Boxes / day (batch size 1):	500 - 1000
Boxes / day (in batches):	1000 - 1500
Feed rate:	45m/min
Cardboard feed single sheet:	fanfold / single sheets
Cardboard feed cassettes:	up to 12 fanfold stacks
No. longitudinal units:	1 to 12
No. trasversal units:	1
Creasing:	standard / serrated
Cardboard waste management:	available
Cardboard thickness:	2 mm to 7 mm
Min. length open box:	420 mm
Electrical connections:	400 V / 50Hz
Power supply:	4 - 7.2 kW
Compressed air:	6-7 bar
Software:	Boxlink PRO
Software Boxdesigner:	available

Detalji

OPTIONALS

Serrated creasing: Creasing with perforation in addition to Standard creasing: makes it easier for the operator to fold the cardboard, which also enhances its appearance.
Trim extraction and conveyors: Composed of extractor to remove cardboard trim laterally and conveyor belt to remove waste.
End of cardboard sensors: A set of photocells that give an early warning that the cardboard pallet is running out.
Double driver: Implementation of a 2nd automatic longitudinal positioning unit, resulting in a reduction of repositioning time by up to 40%.
Box code printing management: Integrated solution for printing codes, short descriptions or barcodes on the nner surface of the box by means of ink-jet marking with 12.7 mm HP print head.
Label printing management: Integrated label printing solution in combination with box production with network-connected thermal transfer printer.
